MUST BE USED WITH RETROFIT/LED (Click Here)
Product Summary

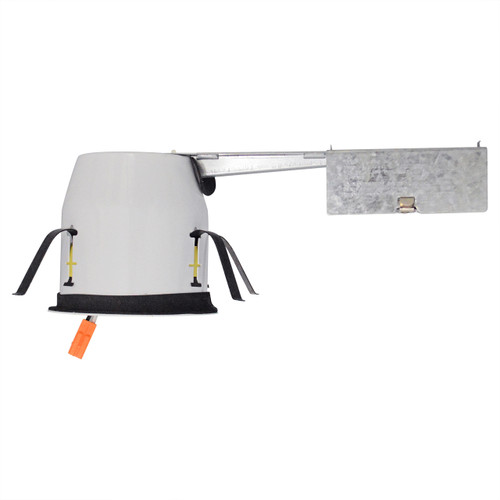

The A4/LED/SH/R/IC/AT is a 4-inch, specification-grade recessed remodel housing engineered specifically for spaces with restrictive vertical clearance. This low-profile fixture installs directly from below into existing drywall or wood ceilings, completely eliminating the need for above-floor attic access. Code-engineered with an IC rating, the housing is safe for direct, continuous contact with thermal insulation. Its ASTM-E283 certified Air-Tight construction effectively seals the ceiling plenum, preventing conditioned air from escaping to cut down on utility costs.
Key Features
-
Ultra-Shallow Profile: Specially engineered to fit seamlessly into tight ceiling joist spaces and low-clearance plenums.
-
Insulation Contact (IC) Rated: Certified safe for direct, continuous contact with loose-fill, batt, or rolled ceiling insulation.
-
Air-Tight Construction: Meets rigorous ASTM-E283 standards to eliminate drafts and reduce residential or commercial energy loss.
-
No Above Access Needed: Installs quickly and entirely from below the ceiling line—ideal for historical retrofits and renovations.
-
Flexible Ceiling Thickness Fit: Deep-reach collar adjustments smoothly accommodate a wide range of ceiling depths.
-
Heavy-Duty Retention: Equipped with four robust remodel clips that pull the housing perfectly flush and secure it against standard ceiling panels.
-
Integrated Splicing Center: Pre-wired junction box listed and designed to handle daisy-chained through-branch circuit runs.
Specifications
Electrical & Wiring
-
Junction Box: Listed for Through-Branch Circuit Wiring (Feed-Through)
-
Conduit Knockouts: One 1-1/8" Master Knockout, Six 7/8" Knockouts
-
Wire Entry: Four Romex Pryouts equipped with integrated strain-relief clamps
Mechanical & Installation
-
Aperture Size: 4-Inch
-
Installation Type: Remodel Retrofit (Below Ceiling)
-
Collar Adjustment Range: Adjusts from 5/8” to 1-3/8” to track vertical ceiling thickness
-
Securing Mechanism: 4 Snap-In Remodel Clips (optimized for 1/2” and 5/8” ceiling panels)
Environmental Ratings
-
Insulation Safeguard: IC-Rated (Insulation Contact)
-
Airflow Leakage: Certified Air-Tight via ASTM-E283 testing
Certifications
-
cUL Listed for Feed-Through Branch Wiring
-
cUL Listed for Damp Locations
-
Certified ASTM-E283 Air-Tight
-
Compliant with California Title 24 High-Efficacy Standards
Applications
-
Tightly Configured Drywall, Plaster, or Wood Remodel Ceilings
-
Multi-Family Retrofits, Townhomes, and Drop-Ceiling Soffits
-
High-Efficiency Kitchen, Hallway, and Living Room Renovations
-
Multi-Floor Commercial Developments with Shallow Floor-to-Ceiling Clearances
-
Covered Hospitality Corridors and Restrooms (Damp Location Rated)
-
Retrofitting Structural Insulated Ceiling Cavities
-
Structural Remodels with Zero Above-Floor Access
-
Code-Compliant Energy Upgrades for California Title 24 Projects
Downloads
• Submittal Sheet with Specifications SPECIFICATIONS
• Installation Instructions (Click Here to Download
)
