Product Description - 4" 5CCT Gimbal Round LED Downlight (10W)
4" 5CCT Gimbal Round LED Downlight (10W)
The 4" 5CCT Gimbal Round LED Downlight delivers 600 lumens of high-efficiency, directional lighting designed for precision accent and task illumination. Featuring a field-adjustable 5CCT selectable toggle switch and smooth full-range dimming capabilities, this premium fixture grants complete control over both color temperature and light output. Outfitted with an integrated junction box (J-box) for a streamlined, canless installation, it is the perfect energy-saving option for adding focused, modern style to both residential and commercial spaces.
Key Features
- Directional Gimbal Design: Features an adjustable, pivoting gimbal head that allows you to tilt and position illumination exactly where you need it most.
- 5-CCT Field Selectable: Equipped with an on-fixture slide switch to easily select between five color temperature settings ranging from warm 2700K to crisp 5000K daylight.
- Focused Narrow Spot: Engineered with a precise 40° beam angle, delivering high-impact, concentrated illumination ideal for highlighting artwork, features, or displays.

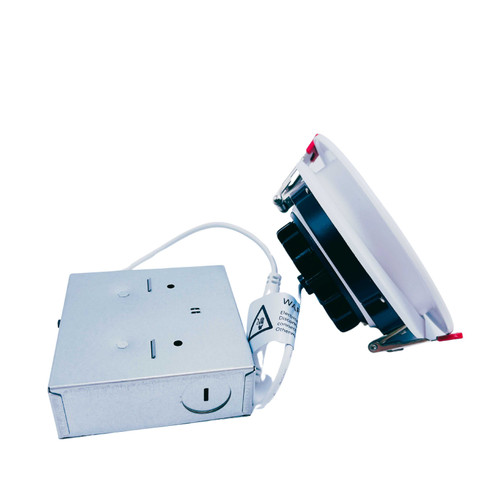

- Canless J-Box Configuration: Eliminates the need for a traditional recessed housing can by utilizing a built-in junction box driver system, accelerating on-site installation.
- Smooth Full-Range Dimming: Supports continuous, flicker-free dimming from 10% down to 100% to effortlessly modify room atmosphere and ambiance.
- Vibrant Color Accuracy: High CRI >90 rating paired with high R9 output ensures interior spaces, finishes, and decor appear rich and true-to-life.
- All-Weather Wet-Location Rated: Constructed with a durable metal structural frame certified for wet locations, making it perfect for high-humidity bathrooms or covered exterior entryways.
Product Specifications
| Attribute | Specification |
| Fixture Size & Type | 4-Inch Round Directional Gimbal Downlight |
| Light Engine / Chip Type | Premium COB LED (Smalite Matrix) |
| Power Consumption | 10W |
| Luminous Flux Output | 600 Lumens (lm) |
| System Efficacy | 60 lm/W |
| Working Input Voltage | 120V AC, 60Hz Systems |
| Power Factor Threshold | ≥ 0.90 |
| Input Rating Current | 100mA |
| Beam Angle Distribution | 40° Narrow Spot / Focused Flood |
| Color Temperature (5CCT) | 2700K / 3000K / 3500K / 4000K / 5000K (Adjustable Toggle Switch) |
| Color Rendering Index (CRI) | Ra > 90 (High R9 Spectrum Performance) |
| Installation Format | Canless Recessed Design with Included Snap-On Junction Box |
| Structural Material | Heavy-Duty Corrosion-Resistant Metal |
| Physical Dimensions | 128 mm Diameter × 55 mm Height |
| Operating Temp. Thresholds | -20°C to 45°C (-4°F to 113°F) |
| Operational Lifespan | 50,000 Hours (L70 Performance Metrics) |
| Certifications & Safety Marks | UL / cUL Listed, Energy Star Certified, FCC Compliant, RoHS Standards |
Applications
- Targeted Accent Lighting: Ideal for highlighting upscale wall art, gallery frames, museum displays, and custom architectural features.
- Retail & Showrooms: Maximizes product contrast and texturing within high-end clothing boutiques, auto dealerships, and retail spaces.
- Residential Living Areas: Perfect for sloped ceilings, modern kitchens, home theaters, hallways, and bathroom task zones.
- Commercial Layouts: Offers sleek, low-profile directional accent lighting inside office lobbies, building reception zones, and corporate spaces.
