Product Description - 4" 5CCT Gimbal Square LED Downlight

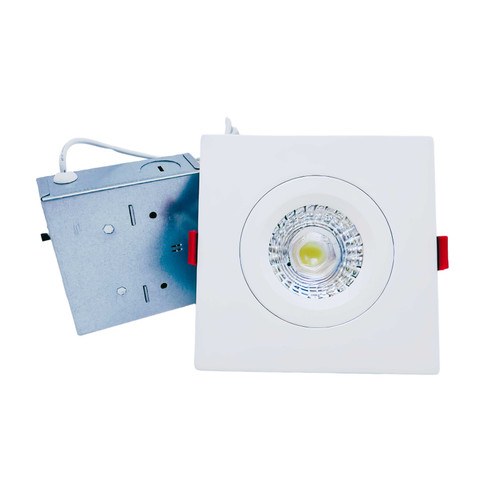

4" 5CCT Gimbal Square LED Downlight
The 4" 5CCT Gimbal Square LED Downlight delivers a powerful 1000 lumens with adjustable directional lighting for precision targeted illumination. Engineered with a clean square trim layout, a field-adjustable 5CCT selectable toggle switch, and smooth full-range dimming capabilities, this premium fixture grants complete control over both light output and color temperature. Outfitted with an integrated junction box (J-box) for a streamlined, canless installation, it is the ideal energy-efficient choice for sophisticated accent and task lighting across modern residential and commercial spaces.
Key Features
- Directional Gimbal Head: Features an adjustable, pivoting gimbal design housed within a modern square trim, allowing you to easily tilt and direct illumination exactly where you need it most.
- 5-CCT Field Selectable: Outfitted with an on-fixture color tuning switch to toggle seamlessly between 2700K, 3000K, 3500K, 4000K, and 5000K white thresholds.
- Focused Narrow Beam: Engineered with a precise 40° beam angle to provide high-impact, concentrated accent lighting on artwork, feature walls, or product displays.
- Integrated Junction Box: Simplifies setup with a built-in J-box driver configuration, eliminating the need for traditional housing cans and speeding up ceiling installations.
- Smooth Full-Range Dimming: Supports continuous, flicker-free dimming from 10% to 100% to easily adapt the room's tone and visual mood.
- True Color Accuracy: High CRI >90 rating paired with high R9 output ensures colors appear rich, natural, and exceptionally true-to-life.
- All-Weather Protection: Fully wet-location rated with a durable metal construction, making it perfect for high-humidity interiors and covered exterior patios.
Product Specifications
| Attribute | Specification |
| Fixture Size & Type | 4-Inch Square Directional Gimbal Downlight |
| Light Engine / Chip Type | Premium COB LED (Smalite Matrix) |
| Power Consumption | 15W |
| Luminous Flux Output | 1000 Lumens (lm) |
| System Efficacy | 66.67 lm/W |
| Working Input Voltage | 120V AC, 60Hz Systems |
| Power Factor Threshold | ≥ 0.90 |
| Input Rating Current | 150mA |
| Beam Angle Distribution | 40° Narrow Spot / Focused Flood |
| Color Temperature (5CCT) | 2700K / 3000K / 3500K / 4000K / 5000K (Adjustable Toggle Switch) |
| Color Rendering Index (CRI) | Ra > 90 (High R9 Spectrum Performance) |
| Installation Style | Canless Recessed Design with Included Snap-On Junction Box |
| Structural Material | Heavy-Duty Corrosion-Resistant Metal |
| Physical Dimensions | 130 mm Width × 55 mm Height |
| Operating Temp. Thresholds | -20°C to 45°C (-4°F to 113°F) | Wet Location Rated Seals |
| Operational Lifespan | 50,000 Hours (L70 Performance Metrics) |
| Certifications & Safety | UL / cUL Listed, Energy Star Certified, FCC Compliant, RoHS Standards |
Applications
- Targeted Accent Lighting: Ideal for highlighting upscale wall art, gallery frames, museum displays, and custom architectural elements.
- Retail Showrooms: Maximizes product contrast and texturing within high-end clothing boutiques, auto dealerships, and retail spaces.
- Residential Living Areas: Perfect for modern geometric layouts, sloped ceilings, clean kitchens, home theaters, hallways, and bathroom task zones.
- Commercial Layouts: Offers sleek, low-profile directional accent lighting inside office lobbies, building reception zones, and corporate spaces.
Product Specifications PDF
