Product Description - AH886F Combo Smoke & Carbon Monoxide Alarm

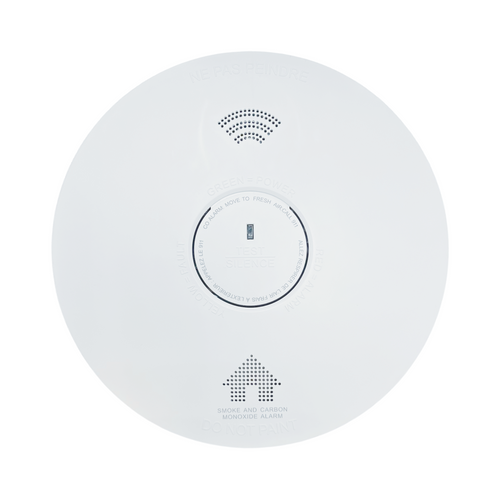

AH886F Combo Smoke & Carbon Monoxide Alarm
The AH886F Combo Smoke & Carbon Monoxide Alarm provides comprehensive, dual-sensor protection against both fire and toxic gas hazards within a single architectural unit. Engineered to conform with the latest UL217 9th Edition safety standards, this premium life-safety device operates on 120V AC infrastructure line power and features a 9V alkaline battery backup for non-stop monitoring during utility outages. Designed for ultimate structural scalability, it supports extensive hardwired and optional wireless interconnectivity to ensure rapid, building-wide emergency notification when danger is detected.
Key Features
- Dual-Hazard Defense Grid: Combines precision smoke and carbon monoxide detection inside a single compact housing, minimizing ceiling clutter while providing cross-functional hazard safety.
- UL217 9th Edition Compliance: Certified to comply with modern, rigorous national safety standards specifically tuned to reduce nuisance cooking alerts while increasing early detection signatures.
- Continuous Power Infrastructure: Directly wires into standard 120V AC electrical lines, backed by a 9V alkaline powercell system to maintain complete building security during grid failures.
- Multi-Station Interconnection: Supports robust hardwired network pooling for up to 18 units, enabling synchronized cascading alerts that immediately propagate through an entire property.
- Dual-Tier High-Volume Alerts: Features a tailored auditory warning array delivering an intensive >85 dB buzzer output for fire alerts alongside a clear >65 dB speaker for CO events.
- Tri-Color Diagnostic LEDs: Outfitted with user-friendly status indicators—Green for stable power input, Red for emergency alarm modes, and Yellow to point out hardware fault diagnostics.
- Industrial Fire-Rated Casing: Formed with premium flame-retardant ABS+PC materials holding a strict UL94 V-0 structural flammability rating with an elegant frosted face finish.
Product Specifications
| Attribute | Specification |
| Model Number | AH886F Series Combo Unit |
| Device Configuration | Hardwired Interconnectable Smoke & Carbon Monoxide (CO) Alarm |
| Primary Input Voltage | 120V AC / 60Hz Utility Infrastructure Line |
| Emergency Battery Backup | 9V Alkaline Battery Backup (Raymax / GP Options Included; >1-Year Span) |
| Hardwired Interconnectivity | Up to 18 Compatible Devices (Integrated with Kidde, First Alert, USI Systems) |
| Interconnection Wire Rating | U11016 Type, 600V Insulation, 105°C Thermal Threshold |
| Wireless RF Mesh Expansion | Optional 915MHz RF Module Integration (>100m Open-Air Range) |
| Acoustic Output Rating | • Smoke Alarm Mode: >85 dB at 3 meters (Buzzer) • CO Alarm Mode: >65 dB at 1 meter (Speaker) |
| Chassis Materials & Finish | Flame-Retardant ABS + PC Housing (UL94 V-0 Rated) with Frosted Face Shell |
| System Controls Interface | Integrated Multi-Function Test / Silence Button Interface |
| Operating Range | 0°C to 38°C (32°F to 100.4°F) | <93% Relative Humidity (RH) |
| Certifications & Standards | ETL Listed Mark, Certified to UL217 (9th Ed), UL2034, CSA 6.19 | RoHS Compliant |
| Manufacturer Warranty | 3-Year Limited Warranty Cover |
Applications
- Residential Placements: Critical life-safety deployment inside primary master suites, children’s bedrooms, multi-level hallways, and main family living spaces.
- Multi-Family Developments: Excellent code-compliant protection for multi-unit housing layouts, residential complexes, and modern apartment buildings.
- Commercial Infrastructure: Perfect for corporate office designs, institutional properties, and public commercial facilities requiring code-certified coverage.
- Whole-Building Safety Networks: Ideal for facility tracking systems that mandate synchronized hardwired or wireless multi-station cascading alarm arrays.
- Structural Installation: Designed for flat, flush ceiling-mounted or wall-mounted security placement via the included mounting plate bracket hardware.
Product Specifications PDF
