Product Description - 25W Universal LED Emergency Backup Driver

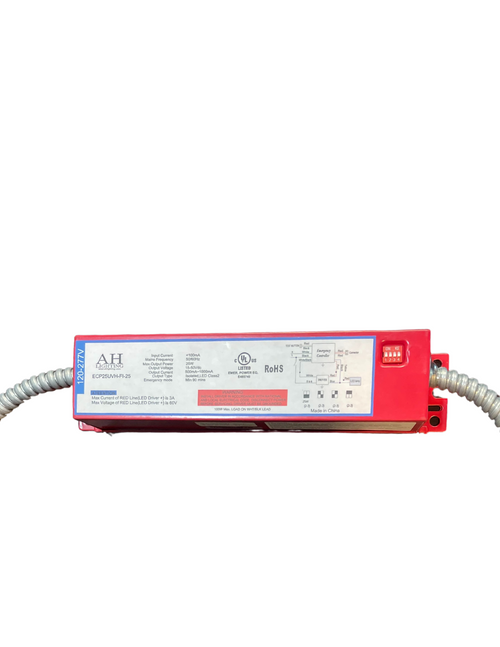

25W Universal LED Emergency Backup Driver

The 25W Universal LED Emergency Backup Driver is a professional-grade, code-compliant life safety solution engineered to provide uninterrupted illumination during sudden power outages. Designed for seamless integration within a wide array of commercial and institutional LED luminaires, this versatile emergency driver operates on a universal 120-277V AC input grid. Upon sensing an AC power failure, it automatically transfers to emergency mode, delivering a constant 25W power output within a 15-50V DC range to keep path-of-egress lighting fully active. Its compact structural profile allows for easy internal fixture installation or remote mounting, minimizing standby power draw to less than 1W. This fallback driver is the definitive choice for facilities managers and electrical contractors seeking a reliable, high-performance solution to satisfy strict building safety, NFPA, and OSHA regulations across expansive floor plans.

Key Features

High-Output Emergency Delivery: Supplies a continuous 25W of constant-current emergency power to ensure code-compliant visibility along critical path-of-egress walkways.
Universal Electrical Compatibility: Automatically senses and adapts to input voltages from 120V to 277V AC at 50/60Hz, ensuring seamless integration into varied commercial power grids.
Intelligent Intelligent Voltage Sensing: Optimized to safely support modern LED architectural arrays requiring a 15-50V DC secondary output operating threshold.
Instantaneous Automatic Transfer: Features rapid internal switching circuitry that immediately triggers fallback emergency battery power the millisecond a main AC power loss occurs.
Eco-Friendly Standby Efficiency: Engineered with an advanced low-draw monitoring circuit that restricts standby power consumption to less than 1W on white/black lead wires.
Ultra-Compact Profile Housing: Built with a slim, low-profile configuration that fits neatly inside standard commercial troffers, linear channels, or shallow ceiling plenums.

Product Specifications

Attribute	Specification
Product Category / Line	Universal Constant-Current LED Emergency Backup Driver Series
Primary Working Input Voltage	Dual-Voltage 120-277V AC Auto-Sensing Input
Grid Frequency Spectrum	50 / 60 Hz Alternating Current Compatibility
Maximum Line Input Current	100mA Maximum System Load Draw
Standby Consumption Rating	< 1W Total Standby Consumption (White/Black Leads)
System Power Factor Efficiency	> 0.60 Power Factor achieved at Full Load Threshold
Emergency Wattage Output	25W Regulated Constant Power Delivery
Secondary Output Voltage Window	15V to 50V DC Constant Range
Secondary Output Current Range	500mA to 1000mA Auto-Regulating Drive Output
Circuit Operations Profile	Automatic Transfer and Constant-Current Feedback Management
Installation Framework	Integrated Internal Fixture Housing or Remote Mounting Channels
Safety Code Targets	NFPA 101 Life Safety Code, NEC, OSHA, and IBC Egress Compliant

Applications

LED Troffers & Ceiling Panels: Installs cleanly inside recessed panels to transform standard office troffers into emergency lighting units.
Linear & Architectural Fixtures: Fits inside slim geometric housings and linear suspensions without disrupting modern design lines.
Commercial Offices & Public Complexes: Provides a code-compliant safety system across corporate workspaces, lobbies, and conference floors.
Educational & Healthcare Facilities: Ensures dependable backup power in high-occupancy hospital wings, university laboratories, and school corridors.
Warehouses & High-Bay Interiors: Guarantees clear visibility for safety personnel walking through large open bays and warehouse loading areas during blackouts.
Corridors, Stairwells & Escape Routes: Keeps critical fire escape channels, exit stairwells, and public egress paths fully illuminated.

Product Resource Center

Click Here to Download Spec Sheet Click Here to Download Installation Manual Click Here to Watch Installation Video
