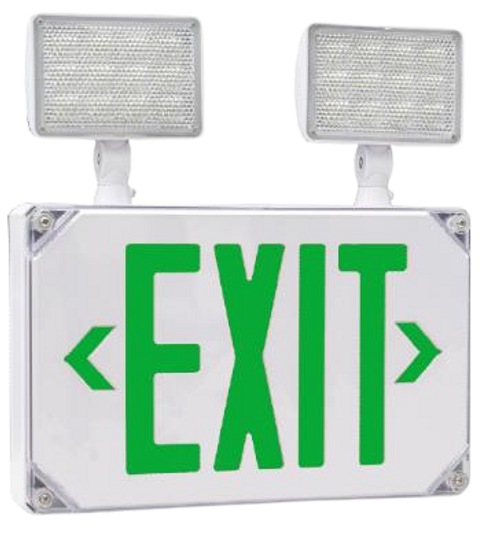

Product Description - Wet Location IP65 LED Emergency Exit Sign (AH-7111SR / AH-7111SG)
Wet Location IP65 LED Emergency Exit Sign
The Wet Location IP65 LED Emergency Exit Sign is a rugged, code-compliant life safety luminaire engineered for peak performance in harsh, high-moisture, and demanding environmental conditions. Featuring an advanced IP65 dust- and water-tight seal along with an internal battery backup system, it guarantees a minimum of 90 minutes of continuous, high-visibility illumination during critical power failures. Constructed from heavy-duty, injection-molded thermoplastic with a premium UL-94V-0 flame-retardant rating, this ultra-durable exit sign supports universal single- or double-face setups and multi-surface mounting. It stands as the definitive choice for satisfying strict NFPA, NEC, and OSHA safety codes across open-air commercial properties, loading docks, and industrial complexes.
Key Features
- IP65-Rated Wet Location Engineering: Outfitted with robust weatherproof gaskets and seals to prevent water spray, dust, and humidity from reaching the internal electrical framework.
- Universal Configuration System: Shipped with extra faceplates and pop-out directional chevrons to let installers set up single- or double-face layouts on-site easily.
- 90-Minute Battery Egress Protection: Uses an integrated, maintenance-free 3.6V Nickel Cadmium battery to supply a reliable 90 minutes of emergency power path lighting during outages.
- Flame-Retardant Thermoplastic Chassis: Molded from premium, impact-resistant ABS thermoplastic housing rated at UL-94V-0 for elite flame-retardant and fire-resistant safety.
- High-Visibility LED Contrast: Displays crisp 6-inch fully illuminated characters available in rich Red or vibrant Green lettering formats for rapid identification across long distances.
- Multi-Surface Mounting Architecture: Universal structural design enables secure installation via flush back wall mount, top ceiling suspension, or end-bracket side placement.
- Rigorous Code Compliance: Fully certified to meet UL 924 emergency standards, CEC Title 20 efficiency guidelines, NFPA 101 Life Safety Code, NEC, and OSHA workplace metrics.
Product Specifications
| Attribute | Specification |
| Product Series | Wet Location Weatherproof LED Exit Sign Series |
| Model Variations | AH-7111SR (Red Lettering) / AH-7111SG (Green Lettering) |
| Light Engine Matrix | 24 High-Intensity 0.1W SMD LEDs (2.4W Total Array Output) |
| Working Input Voltage | Dual-Voltage 120/277V AC, 60Hz Operational Ready |
| Input System Rating | 2.0W Standby Consumption, 150mA Max Operational Current |
| Internal Battery Type | 3.6V Nickel Cadmium (Ni-Cd) Maintenance-Free Cell |
| Battery Charging Window | 24 Hours Full Recharge Recovery Duration |
| Emergency Discharge Window | 90 Minutes Minimum Continuous Runtime |
| Environmental Integrity | IP65 Rated Moisture and Dust Resistant (Wet Location Certified) |
| Operating Temp. Range | 0°C to 40°C (32°F to 104°F) Safety Threshold Limits |
| Letter Dimension Standards | 6" High-Contrast Fully Illuminated Egress Characters |
| Housing Materials & Finish | Injection-Molded White Thermoplastic ABS (UL-94V-0 Rated) |
| Physical Dimensions | 320 mm Length × 332 mm Height × 64 mm Depth |
| Certifications & Quality Marks | UL 924 Listed, CEC Title 20 Compliant, NFPA 101, NEC, OSHA Compliant |
Applications
- Outdoor Spaces & Breezeways: Provides reliable directional escape pathways for outdoor commercial strip malls, public plazas, and exposed walkways.
- Parking Enclosures & Loading Docks: Resists continuous vehicle exhaust, damp sea air, and ambient moisture in transit terminals and storage structures.
- Industrial & Warehouse Interiors: Delivers durable, impact-resistant safety illumination across manufacturing bays, chemical facilities, and industrial parks.
- High-Traffic Public Safety Zones: Standardizes emergency path markers throughout school corridors, healthcare facilities, public transport stations, and municipal spaces.
Product Specifications PDF
