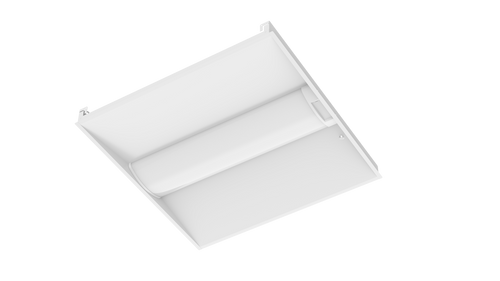

LED TROFFER 2X2 3CCT WITH EMERGENCY BALLAST

LED TROFFER 2X2 3CCT WITH EMERGENCY BALLAST

(No reviews yet) Write a Review
$80.99
SKU:
T2X2/3CCT/EM BALLAST

AH Lighting CH3138 Series LED Recessed Troffer with Emergency Ballast

The AH Lighting CH3138 Series LED Recessed Troffer is a stylish, ultra-efficient commercial luminaire designed for seamless installation in recessed grid ceiling systems. This versatile fixture features field-adjustable 3CCT color selection and selectable wattage, allowing users to customize color temperature and lumen output to perfectly match any environment while significantly reducing inventory SKU complexity.

Equipped with a built-in emergency backup ballast, this troffer ensures continuous, code-compliant illumination during critical power failures. Combining high efficacy, uniform light distribution, and a low-glare architectural design, it is an optimized choice for demanding modern commercial spaces.

Key Features

  • Selectable Wattage & 3CCT Flexibility: Features field-adjustable toggle controls to instantly customize both power consumption and color temperature (3500K / 4000K / 5000K) to suit varying job site requirements.

  • Integrated Emergency Backup: Factory-installed emergency ballast provides code-compliant backup illumination to safeguard pathways during building power outages.

  • High Efficiency Performance: Delivers exceptional, cost-saving luminous efficacy up to 125 lm/W, significantly reducing overhead energy and ongoing maintenance costs.

  • Low-Glare Optical Design: Engineered for superior visual comfort, providing crisp, uniform light distribution across workspaces with minimized glare.

  • Premium Construction Seals: Integrated PC end covers eliminate unsightly edge light leakage, maintaining clean visual alignments within the ceiling grid.

  • Full-Range Dimming & Control Compatibility: Built with 0–10V smooth dimming capabilities and comes sensor-ready for fast, on-site smart control upgrades.

  • Rigorous Safety Certifications: Fully certified for safe commercial application with DLC 5.1, UL, and FCC compliance listings.

Product Specifications

Attribute Specification
Series CH3138 Series
Luminaire Type Recessed Commercial LED Troffer
Size Configurations 2x2 ft. | 2x4 ft. | 1x4 ft.
Dimensions (HxWxL)

2x2: 23.74" × 23.74" × 1.97"


2x4: 47.76" × 23.74" × 1.97"


1x4: 47.76" × 11.73" × 1.97"
Power Output (Selectable) 20W / 25W / 30W | 25W / 30W / 35W | 30W / 40W / 50W (Model Dependent)
Luminous Efficacy Up to 125 lumens per Watt (lm/W)
Color Temperature (3CCT) 3500K / 4000K / 5000K (Field-Selectable)
Input Voltage Range AC120–277V / AC120–347V (50/60Hz Options)
Dimming Profile 0–10V Smooth Dimming
Color Rendering Index (CRI) >80
Rated Lifespan 50,000 Hours
Emergency Function Built-in Integrated Emergency Backup Ballast
Compliance & Listings DLC 5.1 Standard, UL Listed, FCC Certified

Additional Structural Features

  • Access Requirements: Access above the ceiling grid is required for standard installation.

  • Insulation Safety: Inherently protected and safely rated for Type IC installations.

  • Environmental Rating: Fully certified and suitable for damp indoor locations.

  • Application Limit: Engineered for use in non-fire-rated commercial installations or environmental air-handling spaces.

Ideal Applications

  • Corporate offices, conference rooms, and commercial boardrooms.

  • Healthcare complexes, hospitals, and clinical examination rooms.

  • Educational institutions, schools, universities, and lecture halls.

  • High-traffic retail storefronts, corridors, and public hallways.

  • Any standard commercial t-grid recessed ceiling grid layout requiring resilient emergency illumination.
