Product Description - LED Double Ring Ceiling Lamp 16" (HY-DR16-26W)

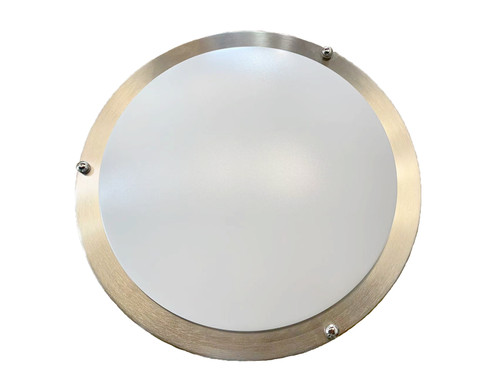

LED Double Ring Ceiling Lamp 16" (HY-DR16-26W)
The LED Double Ring Ceiling Lamp features a high-quality stainless steel body paired with a high light transmittance polycarbonate diffuser, delivering excellent luminous efficiency and visual performance[cite: 1]. This thin-style, low-profile luminaire is engineered with an adjustable 5CCT toggle switch and seamless TRIAC dimming compatibility, making it an ideal choice for residential, hospitality, and modern administrative environments[cite: 1].
Key Features
- Tunable White Technology: Equipped with an adjustable color temperature switch featuring 5 selectable positions (2700K / 3500K / 4000K / 5000K / 6500K)[cite: 1].
- Advanced Dimming Architecture: Smooth TRIAC continuous dimming, extensively tested to be compatible with 95% of standard Lutron and Leviton wall dimmers[cite: 1].
- Premium Engineering & Materials: Built with a durable stainless steel structural housing and high light transmittance polycarbonate lens diffusers for low-glare, even light distribution[cite: 1].
- High Efficiency Performance: Delivers crisp illumination with a high power factor (>0.9) and excellent color quality[cite: 1].
- Long Operational Lifespan: Exceptional lumen maintenance rated to retain over 70% of light output at 50,000+ continuous working hours[cite: 1].
- Eco-Friendly & Certified: Completely RoHS compliant, Energy Star qualified, and ETL certified for indoor safety assurance[cite: 1].
- Manufacturer Assurance: Backed by a dependable 5-year limited commercial warranty[cite: 1].
Product Specifications
| Attribute | Specification |
| Model Configurations | HY-DR16-26WXXK / HY-DR16-26WCCT[cite: 1] |
| Nominal Profile Size | 16-Inch Diameter Profile[cite: 1] |
| Power Draw (Wattage) | 26 Watts[cite: 1] |
| Luminous Flux Output | 2080 Lumens[cite: 1] |
| Input Operating Voltage | 120 VAC, 60Hz[cite: 1] |
| Color Temperature (CCT) | 2700K / 3500K / 4000K / 5000K / 6500K (Adjustable Switch)[cite: 1] |
| Color Rendering Index (CRI) | >80[cite: 1] |
| Dimming Interface | TRIAC Forward / Reverse Phase Dimmable[cite: 1] |
| Power Factor (PF) | >0.9[cite: 1] |
| Beam Angle | 120° Wide Angle Uniform Grid[cite: 1] |
| Protection Rating | IP20 (For Dry Indoor Use Only)[cite: 1] |
| Operating Temperature | -13°F to +113°F (-25°C to +45°C)[cite: 1] |
| Lumen Maintenance Life | L70 @ 50,000+ Hours[cite: 1] |
| Safety Standards Listed | cETLus Safety Listed / RoHS Compliant / Energy Star[cite: 1] |
Dimensional Profile Data
| Dimension Target | Metric (Millimeters) | Imperial (Inches) |
| Outer Diameter (L1) | 405 mm[cite: 1] | 16.0"[cite: 1] |
| Total Profile Thickness (L2) | 85 mm[cite: 1] | 4.13"[cite: 1] |
Applications
- Residential living areas (drawing rooms, primary bedrooms, family rooms)[cite: 1]
- Commercial facilities, common corridors, high-traffic entry walkways, and stairwells[cite: 1]
- Commercial offices, common break rooms, and administrative desks[cite: 1]
- General interior multi-family housing common rooms and rental apartments[cite: 1]
Packaging Logistics (Master Carton Pack)
- Standard Case Pack Quantity: 6 Pieces per master carton box[cite: 1].
- Master Carton Case Size Dimensions: 590 × 425 × 420 mm (23.3" × 16.7" × 16.5")[cite: 1].
- Gross Box Weight: 10.03 kg / 22.1 lbs[cite: 1].
