Product Description - HY Series Heavy-Duty LED Vapor Tight Linear Luminaire (IP66, Wet/Dust-Proof, DLC Premium)

HY Series Heavy-Duty LED Vapor Tight Linear Luminaire (IP66, Wet/Dust-Proof, DLC Premium)

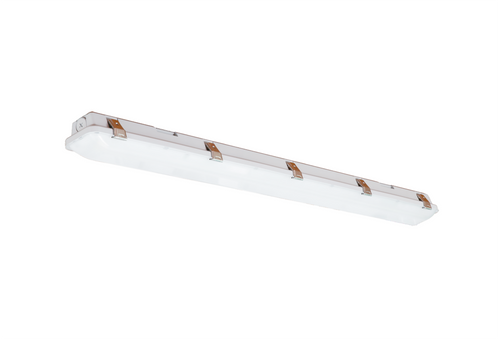

The HY Series Heavy-Duty LED Vapor Tight Linear Luminaire is a next-generation commercial and industrial solid-state lighting solution engineered for maximum light output, harsh-environment durability, and absolute wet- and dust-proof reliability. Built with a single-piece, non-corrosive polycarbonate body and a full-length gasketed polycarbonate lens, this code-compliant fixture features a 5VA flame-retardant fire rating and an IP66 structural ingress safeguard against powerful water jets and heavy dust infiltration. Available in modular 2ft, 4ft, and 8ft configurations with continuous 0–10V dimming architecture, the HY Series operates seamlessly on wide multi-volt grids (120–277VAC or 120–347VAC) and boasts a rugged PCB printed circuit board with a integrated 4KV surge withstand capability. Formulated with field-adaptable options for motion sensors or emergency battery backups, it supports flexible bracket-fixed surface mounting through reinforced drill points or chain suspension clip hooks. Certified under rigid ETL safety criteria and DLC Premium metrics, this long-life fixture delivers uniform, low-glare illumination across intensive utility areas, parking structures, marine docks, and walk-in cold storage facilities.

Key Features

IP66 Weather-Tight Protection: Fully sealed chassis blocks environmental ingress from water jets, high-pressure sprays, dust particles, and high ambient humidity, providing an ultra-durable utility framework.
5VA Flame-Retardant Polycarbonate Body: Molded from premium, non-corrosive engineering-grade structural polycarbonate featuring the highest fire-resistance safety classification.
Full-Length Perimeter Gasket Lens: Outfitted with an impact-resistant polycarbonate lens chemically locked by an airtight poured-in-place sealing gasket to eliminate hot spots and ambient color drift.
Integrated 4KV Surge Suppression PCB: High-performance internal circuit boards are fortified to absorb up to 4,000V electrical spikes, safeguarding solid-state arrays against facility line drops or power drops.
Dynamic Dual-Voltage Driver Framework: Available across universal 120–277VAC paths or high-voltage 120–347VAC infrastructure to accommodate heavy industrial power distribution grids.
Flexible Dual Structural Mounting: Heavy-duty installation tabs support flush surface mounting utilizing reinforced drilling layouts, or quick suspension alignment via chain/wire hook clips.
Accessory-Ready Modular Architecture: Pre-wired to support painless field integration of automated occupancy motion sensors or emergency battery backup power units for code safety paths.
DLC Premium & ETL Quality Certified: Validated under rigid energy standards to maximize local utility rebate eligibility while guaranteeing clean, long-term commercial efficiency.

Product Specifications

Attribute	Specification
Product Series Profile	HY Series Industrial LED Vapor Tight Linear Luminaire
Aperture Core Sizing	Available Modalities: 2-Foot (2ft) / 4-Foot (4ft) / 8-Foot (8ft) Models
Nominal System Wattage	20W / 30W / 40W Multi-Tier Configurable Configurations (Model Dependent)
Luminous Flux Matrix	2,600 lm / 3,900 lm / 5,200 lm / 10,400 lm Continuous Brightness Performance
Luminous Lumen Maintenance	L70 Efficiency Benchmarks Exceeding 50,000+ Operational Hours
Working Input Voltage	Universal Range 120–277VAC or High-Voltage 120–347VAC Network Support
Dimming Control Platform	Continuous 0–10V DC Low-Voltage Analog Linear Dimming
Electrical Protection Layer	Premium PCB Sub-Assembly with 4KV Overvoltage Surge Suppression
Power Factor Threshold	>0.9 High Power Factor Energy Optimization Efficiency Standard
Color Temperature Options	Professional Multi-Spectrum Ranges: 3000K / 4000K / 5000K White Balance
Color Rendering Index (CRI)	Ra >80 Clear Visual Accuracy Industry Target Index
Optical Distribution Pattern	120° Wide-Angle Uniform Flooding Beam Spread
Chassis Exterior Material	Single-Piece Non-Corrosive Polycarbonate Shell; 5VA Fire Resistance Rating
Environmental Safeguard	IP66 Rated Ingress Insulation (Dust-Tight, High-Pressure Water Protection)
Thermal Working Envelope	Sustained Boundaries: -25°C to +45°C (-13°F to +113°F) Working Limits
Safety Certification Grid	ETL Listed Safety Compliance, DLC Premium Qualified, RoHS Compliant
Manufacturer Backing	5-Year Limited Structural and Component Warranty Profile

Applications

Parking Garages & Covered Canopies: Throws balanced, uniform floor illumination that increases motorist safety while resisting vehicle exhaust residues and moisture buildup.
Walk-In Refrigerators & Cold Storage: Sustains crisp, instant-on lumen performance in sub-zero environments without cracking or experiencing power loss under heavy freezing loops.
Marine Docks & Subway Transit Stations: Non-corrosive polycarbonate composition blocks airborne salt sprays, brake dust, and constant high-humidity moisture from oxidizing internal electronics.
Industrial Facilities & Wash Bays: Heavy-gauge 5VA fire-rated plastic armor withstands tough chemical treatments, flying debris, and high-pressure cleaning routines easily.
Outdoor Awnings & Overhang Lighting: Enhances commercial loading bay perimeters, gas stations, and entryways with an airtight barrier that repels insects, dirt particles, and rain.
Emergency Path-of-Egress Pathways: Integrates smoothly with emergency safety packs to provide code-compliant standalone exit lighting throughout stairwells and structural basements.

Product Specifications PDF

Click Here to Download Spec Sheet
