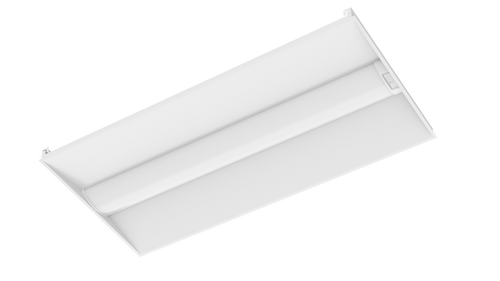

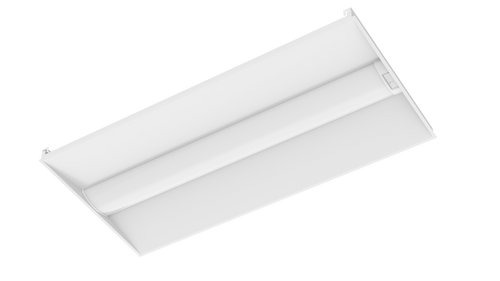

2x4 LED TROFFER

(No reviews yet) Write a Review
$63.99
SKU:
T2X4



Summary



The CH3138 Series LED troffer delivers high-performance, energy-efficient lighting with selectable wattage and color temperature for maximum flexibility. Designed for commercial applications, it provides uniform illumination, low glare, and reliable operation. Ideal for reducing inventory while meeting a wide range of lighting requirements.

Key Features

  • Selectable wattage and CCT (3500K / 4000K / 5000K)
  • High efficacy up to 125 lm/W
  • 0–10V dimmable for lighting control
  • Long lifespan up to 50,000 hours
  • Low glare with excellent color rendering (CRI >80)
  • Sensor-ready design for easy field installation
  • Optional sensor, emergency (EM), and smart control compatibility
  • PC end caps to prevent light leakage
  • Available in multiple sizes (1x4, 2x2, 2x4)
  • UL, FCC, and DLC 5.1 listed

Specifications

  • Voltage: AC 120–277V / 120–347V, 50/60Hz
  • Wattage Options:
    • 1x4: 20W / 25W / 30W
    • 2x2: 25W / 30W / 35W
    • 2x4: 30W / 40W / 50W
  • Efficacy: Up to 125 lm/W
  • Color Temperature: 3500K / 4000K / 5000K (Selectable)
  • Dimming: 0–10V
  • Lifespan: 50,000 hours
  • CRI: >80
  • Mounting Options: Recessed (standard), optional surface mount kit, drywall flange kit
  • Dimensions:
    • 1x4: 47.76" x 11.73" x 1.97"
    • 2x2: 23.74" x 23.74" x 1.97"
    • 2x4: 47.76" x 23.74" x 1.97"
  • Certifications: UL, FCC, DLC 5.1

Applications

  • Offices and corporate spaces
  • Schools and educational facilities
  • Healthcare environments
  • Retail stores and commercial buildings, etc.
