Product Description - CH3138 Series LED Commercial Troffer

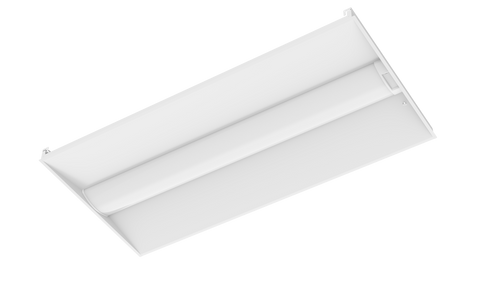

CH3138 Series LED Commercial Troffer

The CH3138 Series LED troffer is a stylish and energy-efficient luminaire designed for recessed commercial applications. It features selectable color temperature and power, allowing optimal lumen output and flexibility across various lighting environments while reducing inventory requirements. Engineered for high performance, it delivers excellent color rendering, low glare, and supports advanced options including sensors, emergency backup, and smart controls.

Key Features

Selectable wattage and CCT settings for flexible, multi-application field deployment
High efficacy performance (up to 125 lm/W) maximizing energy cost reduction
Low glare design paired with excellent visual uniformity and light quality
Standard 0–10V continuous dimming capabilities
Sensor-ready platform with simple, efficient on-site accessory installation
Compatible with emergency battery backups (EM) and smart control network solutions
Durable PC end covers engineered to completely eliminate light leakage
Long operational lifespan reaching up to 50,000 hours
High color rendering index (CRI >80) for vivid and accurate environments
DLC 5.1 Premium, UL Listed, and FCC compliant certified
Specifically designed for modern commercial recessed grid ceiling systems
Helps distributors and contractors reduce SKU complexity and inventory overhead

Product Specifications

Attribute	Specification
Product Series	CH3138 Series
Example SKU	T2X4/3CCT/SENSOR
Efficacy	Up to 125 lm/W
Color Temperature (CCT)	3500K / 4000K / 5000K (Field Selectable)
Input Voltage Options	AC 120–277V / AC 120–347V (50/60Hz)
Dimming Control	0–10V Standard Dimming
Color Rendering Index (CRI)	>80
Rated Lifespan	50,000 hours (L70)
Integration Capabilities	Sensor Ready \| Emergency Backup (EM) \| Smart System Controls
Optional Accessories	Surface Mount Kit \| Drywall Flange Kit
Certifications	UL Listed, FCC, DLC 5.1

Sizing and Wattage Matrix

Form Factor Size	Selectable Wattage Options	Dimensions (L × W × H)
1x4 ft Fixture	20W / 25W / 30W	47.76" × 11.73" × 1.97"
2x2 ft Fixture	25W / 30W / 35W	23.74" × 23.74" × 1.97"
2x4 ft Fixture	30W / 35W / 40W / 50W	47.76" × 23.74" × 1.97"

Applications

Corporate offices, open floor plans, and modern workspaces
Conference rooms, executive boardrooms, and meeting hubs
Hospitals, medical clinics, and healthcare facilities
Retail spaces, showrooms, supermarkets, and shopping environments
Educational institutions, classrooms, lecture halls, and school facilities
High-traffic hallways, walkways, and commercial corridors
Standard commercial recessed T-bar grid ceiling setups

Product Specifications PDF

Click Here to View Full PDF Specification Sheet
